Highlights

• SmartForm C1 Alloy Frame / SRAM NX Eagle 12-speed drivetrain
• Rockshox Pike Select 140mm fork / Deluxe Select shock
• SRAM G2 R 4-piston hydraulic discs / TranzX dropper post

• Specs

  DETAILS

  • Platform

    Habit
  • Model Name

    Habit 3
  • Model Code

    C23301U

  FRAMESET

  • Frame

    Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
  • Fork

    RockShox Pike Select, 140mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset
  • Headset

    Integrated Sealed Bearing, Tapered
  • Rear Shock

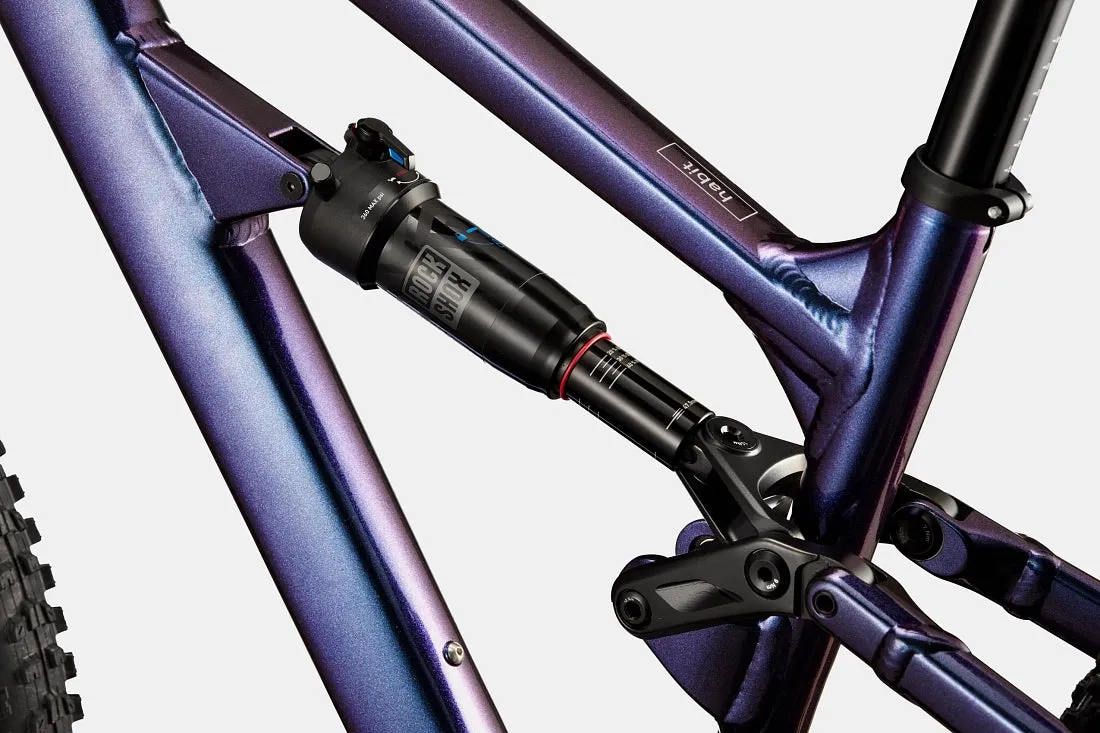

    RockShox Deluxe Select , DebonAir, 2-Pos mode adjust, adjustable rebound

  DRIVETRAIN

  • Rear Derailleur

    SRAM NX Eagle
  • Shifters

    SRAM NX Eagle, 12-speed
  • Chain

    SRAM SX Eagle, 12-speed
  • Crank

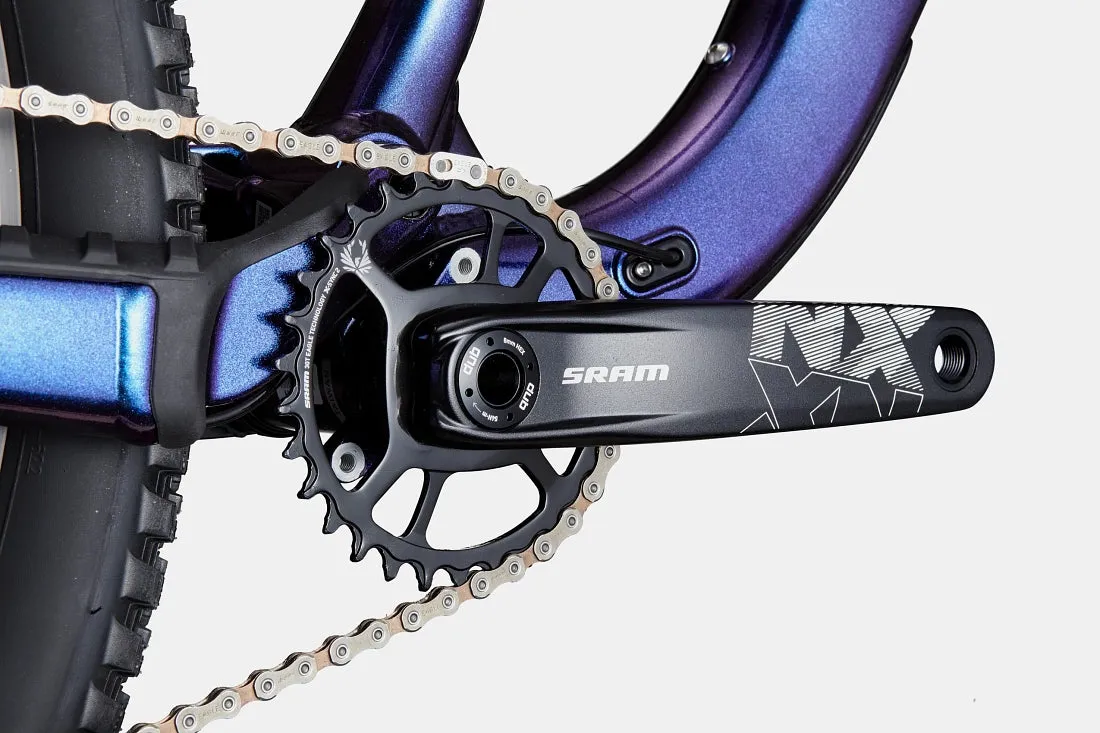

    SRAM NX Eagle DUB, 30T, 55mm chainline
  • Rear Cogs

    SRAM NX Eagle, 10-50, 12-speed
  • Bottom Bracket

    SRAM DUB BSA MTB73 Wide

  BRAKES

  • Brakes

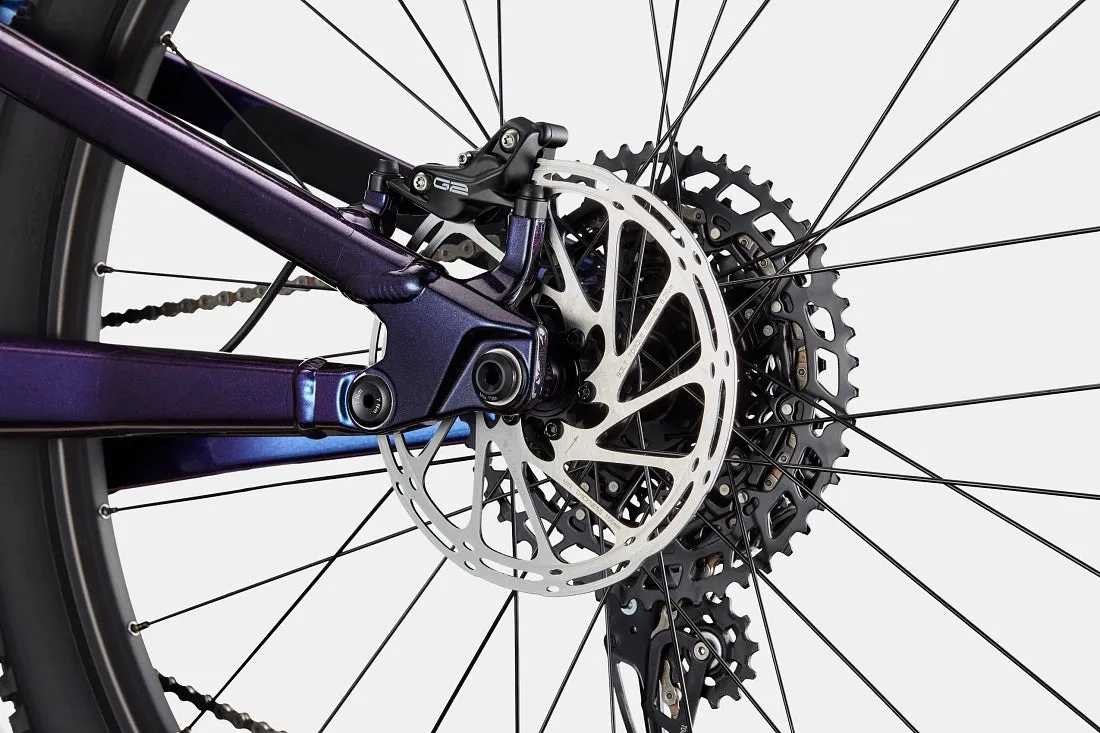

    SRAM G2 R hydraulic disc, 180/180mm CenterLine rotors
  • Brake Levers

    SRAM G2 R hydraulic disc

  WHEELS

  • Rims

    Stan's NoTubes Arch D, 32h, tubeless ready
  • Spokes

    Stainless Steel, 14g
  • Tires

    (F) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready, (R) Maxxis Rekon, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready
  • Tire Size

    2.4
  • Wheel Size

    29, 27.5 (XS)
  • Hubs

    (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
  • Front Tire

    Maxxis Dissector, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready
  • Rear Tire

    Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO, tubeless ready

  COMPONENTS

  • Handlebar

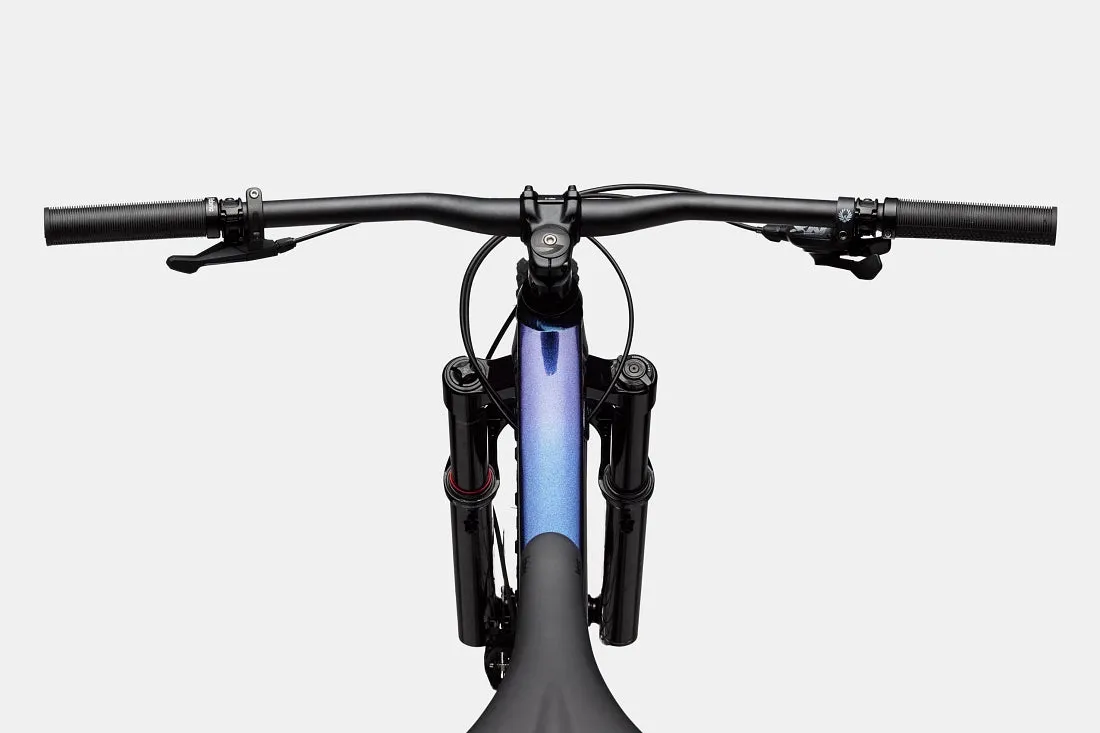

    Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
  • Stem

    Cannondale 3, 6061 Alloy, 31.8, 0°
  • Grips

    Cannondale TrailShroom
  • Saddle

    Cannondale Scoop Shallow Sport, steel rails
  • Seatpost

    TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)




  PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
