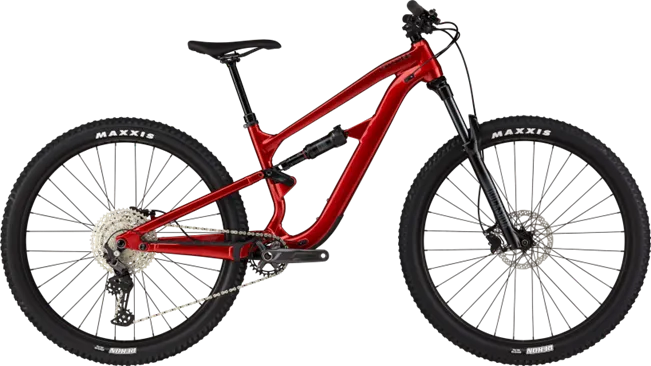

Cannondale Habit 4 - 2023
Flow Seeker
A trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun!
Where it thrives
Out in the elements
What it's built for
Trail riding fun
Highlights
- SmartForm C1 Alloy Frame / Shimano Deore 12-speed drivetrain
- Rockshox Recon RL 140mm fork / Deluxe Select shock
- Shimano hydraulic disc brakes discs / TranzX dropper post
Specs
DETAILS
- Platform
- Model NameHabit 4
- Model CodeC23401U
FRAMESET
- FrameHabit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
- ForkRockShox Recon RL, 140mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
- HeadsetIntegrated Sealed Bearing, Tapered
- Rear ShockRockShox Deluxe Select, DebonAir, adjustable rebound
DRIVETRAIN
- Rear DerailleurShimano Deore M6100
- ShiftersShimano Deore M6100, 12-speed
- ChainKMC X12, 12-speed
- CrankShimano, FC-5121, 30T, 55mm chainline
- Rear CogsShimano Deore M6100, 11-51, 12-speed
- Bottom BracketShimano BSA 73
BRAKES
- BrakesShimano MT200 hydraulic disc, 180/180mm RT30 rotors
- Brake LeversShimano MT200 hydraulic disc
WHEELS
- RimsWTB STX i25 TCS, 32h, tubeless ready
- SpokesStainless Steel, 14g
- Tire Size2.4
- Wheel Size29, 27.5 (XS)
- Hubs(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
- TiresMaxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
- Front TireMaxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
- Rear TireMaxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
COMPONENTS
- HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
- StemCannondale 3, 6061 Alloy, 31.8, 0°
- GripsCannondale Locking Grips
- SaddleCannondale Ergo XC
- SeatpostTranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)
PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
