**These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer**

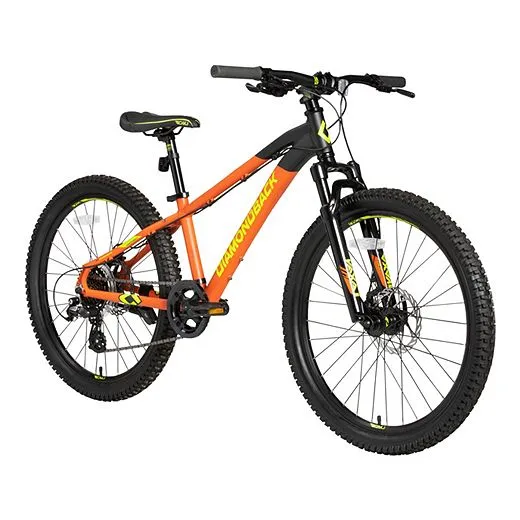

The Diamondback Flowdown 24” is an excellent choice for the young mountain biker. The lightweight hardtail design, disc brakes, quality Shimano components and 7 speed drivetrain provides the aspiring rider with a versatile bike that is great for all around riding on a variety of trails, and the Shimano mega-range freewheel will help them get up any hills they encounter on their journey.
FEATURES
- Lightweight 6061 T6 aluminum frame with Diamondback's formed tubing features optimised wall thickness for a balance of strength, weight, and stiffness that translates to a responsive, and reliable ride

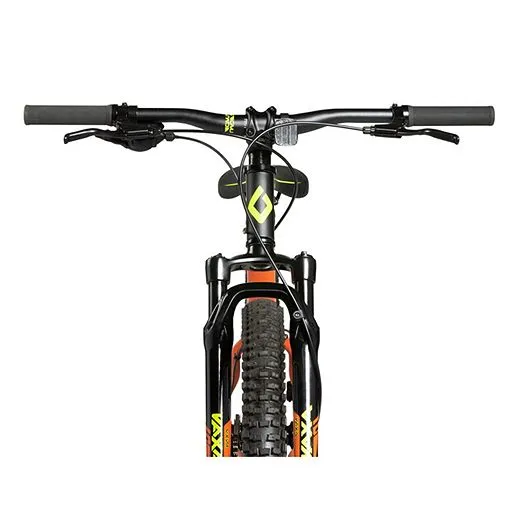

- Vaxa 60mm travel front suspension fork with adjustable preload soaks up the bumps and offers smooth and confident control over various terrain
- 24" x 2.3" aggressive MTB tires for traction that will bite into any trail conditions
- JAK-8 mechanical disc brakes make for sure stopping power in both wet and dry conditions
- Shimano Rapid Fire and Altus 7 speed drivetrain offers precise and deliberate shifting so you can tackle new terrain with confidence
- Easy dependable resin flat pedals so you can jump on your new Diamondback back and ride with confidence
- CAVU Comfort-Mountain saddle is equipped with a quick release seat post clamp so it's always easy to find the perfect saddle height.
- CAVU Lock on grips for a confident and reliable connection point in wet or dry conditions
SPECIFICATIONS
- FRAME
- Frame: 6061 T6 heat treated aluminum frame
- Rear Shock: N/A

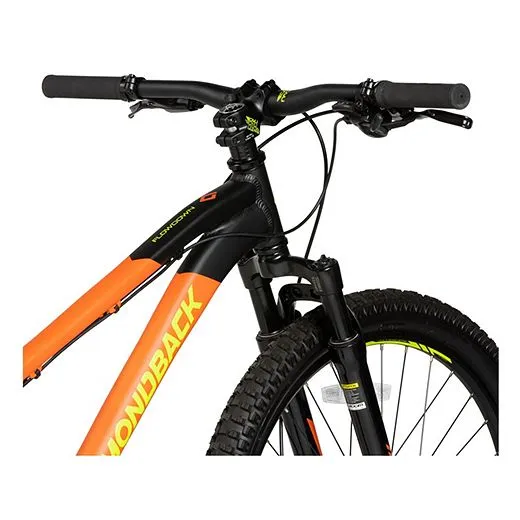

- Fork: Vaxa 60mm travel w/ pre-load adjust
- Cable Routing: External guided w/ full length housing
- DRIVETRAIN

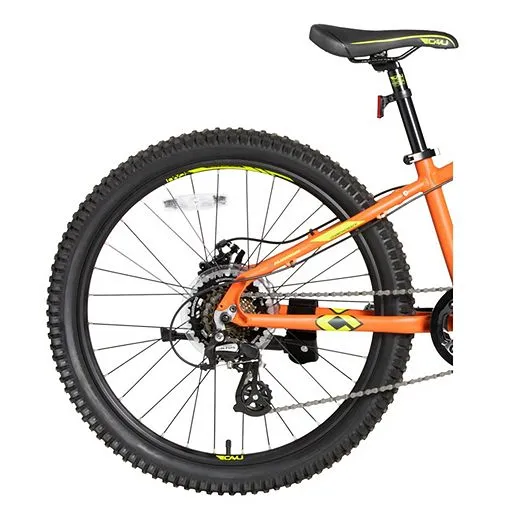

- Rear Derailleur: Shimano Altus M310, 7 speed
- Front Derailleur: N/A
- Shifters: Shimano Rapid Fire M315 (RH), 7 speed
- Cog Set: Shimano TZ500 Hyperglide, Mega Range 14-34T, 7 speed, freewheel
- Chain: KMC Z7
- Crankset: ProWheel Alloy, 9/16*152mm, w/ bash ring
- Bottom Bracket: Gineyea BB73-68, square taper, sealed cartridge
- COMPONENTS
- Front Brake: JAK 8 Mechanical Disc, 160mm rotor
- Rear Brake: JAK 8 Mechanical Disc, 160mm rotor
- Brake Levers: JAK Alloy
- Headset: 1 1/8" Threadless
- Seat post: CAVU Alloy 27.2mm x 250mm
- COCKPIT
- Handlebar: CAVU, 31.8mm*680mm
- Stem: CAVU 50mm, 4 Bolt
- Saddle: CAVU MTB
- Pedals: 9/16" Resin body, flats
- Grips: CAVU Lock-on w/ closed end
- WHEELS/TIRES
- Rims: CAVU Aluminum double wall, 32 hole, 24"
- Front Tire: 24" x 2.3" for all-terrain
- Rear Tire: 24" x 2.3" for all-terrain
- Tubeless Ready: No
- Front Hub: CAVU, 36 H alloy w/ quick release
- Rear Hub: CAVU, 36 H, alloy, w/ quick release
