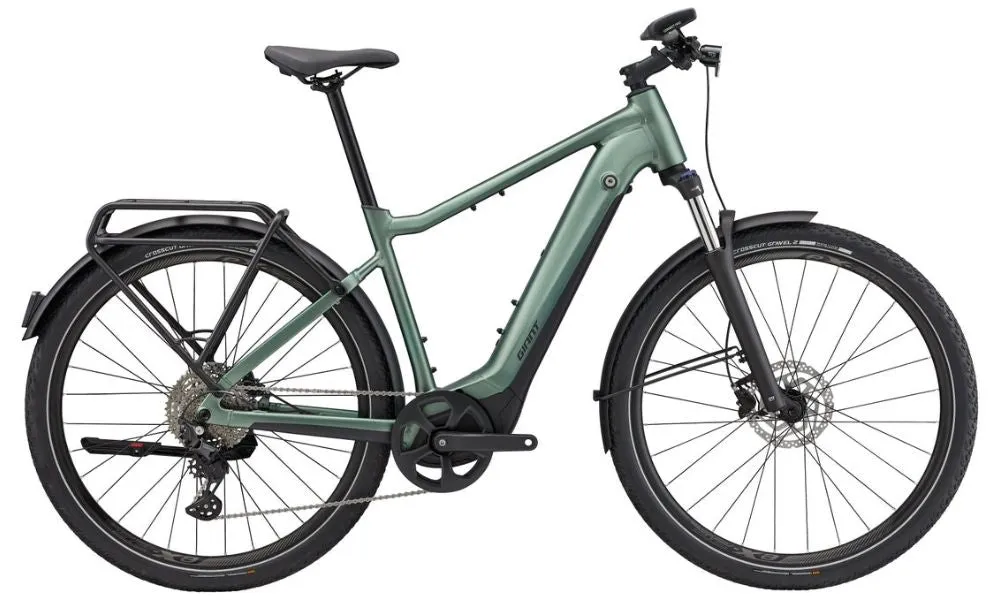

Giant 2023 Explore E 1
Go beyond city limits and find new adventures. The new Explore E gives you the power to ride further with a powerful new motor and longer range. Smooth suspension and larger tyres make it a highly capable trekker for smooth roads, gravel or dirt
The new SyncDrive Sport has 75Nm of torque and delivers high power, even at low speeds. The RideControl EVO colour display shows ride information including speed, distance, battery range and navigation along with heart rate and other fitness data. The controller can connect wirelessly with a smartphone to access email, messaging and other apps.
Smooth ride quality
ALUXX aluminium frameset and new SyncDrive Sport motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.
Route finding info
RideControl EVO full colour display with onboard navigation helps riders find their way. Smartphone connectivity makes it easy to keep the battery charged.
Longer range
EnergyPak 625 battery with 625Wh of power gives riders the freedom to ride further.
Specifications
Giant 2023 Explore E 1
Frame
Colour: Misty Forest
Frame: ALUXX aluminium, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Fork: SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm
Shock: NA
Drivetrain
Crankset: Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Pedals:
Chain: Shimano LinkGlide, CN-LG500
Bottom Bracket: NA
Rear Derailleur: Shimano Deore LinkGlide, 10-speed, Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano Deore, LinkGlide
Freewheel/Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Drive Unit: SyncDrive Sport2, 75Nm, powered by Yamaha
Battery: EnergyPak Smart 625Wh EnergyPak Plus range extender compatible
Wheels
Tyres: [F] and [R] Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Wheels/Rims: Giant eX25, Tubeless Ready, Aluminium
Hubs: Giant eTracker
Braking System
Brakes: Shimano BR-MT200, hydraulic disc, [F] 180mm, [R] 180mm
Brake Levers: Shimano BL-MT200
Other
Handlebar: Giant Connect Riser 31.8mm
Stem: Giant Contact, 8-degree
Saddle: Selle Royal Vivo Ergo Moderate
Seat Post: Giant 30.9mm, 2-bolt Micro Adjust, alloy
Controller: RideControl Dash
Display: RideControl Dash, full colour lcd screen
Charger: EnergyPak 4A smart charger compact
Extras
Kickstand: KSA40 direct mount kickstand
Carrier: MIK rack. System bag & basket compatible
